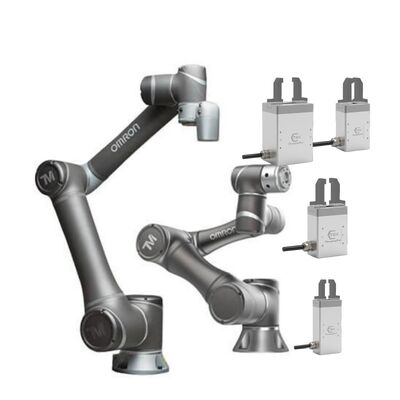

Techman AI Cobot TM5-700 TM5-900 Collaborative Robot Arm CTPM2F8S CTPM2F14S CTPM2F20 CTPM2F30 Zhixing Industrial Flat Hand

Techman AI Cobot TM5-700 TM5-900 Collaborative Robot Arm CTPM2F8S CTPM2F14S CTPM2F20 CTPM2F30 Zhixing Industrial Flat Hand

Cuota De Producción: 1
Precio: US $12000.00 - 20000.00/ Set
Embalaje Estándar: Caja de cartón/Cajón de madera
Período De Entrega: 75~90 días
Forma De Pago: T/T
Capacidad De Suministro: 200 juegos por año
Información detallada
Lugar de origen
Porcelana
Nombre de la marca
Techman Robot
Número de modelo
TM5-700
Voltaje:
DC 48V
potencia(w):
400W
Carga útil máxima:
6kg
Velocidad típica:
1.1m/s
Repetibilidad:
± 0.05 mm
Fuente de alimentación:
100-240VAC, 50-60Hz
Clasificación de IP:
IP54 (brazo del robot); IP32 (caja de control)
Temperatura:
0-50 ℃
Velocidad máx.:
4m/s
Alcanzar:
700 mm
Cantidad de orden mínima:
1
Precio:
US $12000.00 - 20000.00/ Set
Detalles de empaquetado:
Caja de cartón/Cajón de madera
Tiempo de entrega:
75~90 días
Condiciones de pago:
T/T
Capacidad de la fuente:
200 juegos por año
Descripción del producto
Product Overview

The Techman TM5-700 is a compact 6-axis collaborative robot with built-in vision system. It has 700 mm reach and 6 kg payload, making it suitable for medium-sized tasks where space is limited but precision and vision guidance are needed. The integrated camera and AI processing allow it to see, locate, and pick objects without extra hardware.

Features
  • Built-in vision system with color camera
  • Easy hand-guiding teaching
  • TMflow drag-and-drop programming
  • Compliant safety design (ISO/TS 15066)
  • Built-in I/O and Modbus support
  • No external PC required for vision tasks
  • Fast setup for pick & place and assembly
Technical Specifications
Payload: 6 kg
Reach: 700 mm
Degrees of Freedom: 6 axes
Repeatability: ±0.05 mm
Maximum Speed: 4 m/s (joint speed)
Vision: Integrated 5MP color camera, 1.2 m * 1.2 m working area
IP Rating: IP54
Mounting: Floor, ceiling, wall
Power Consumption: ~200 W average
Applications
  • Pick and place with vision
  • Machine tending
  • Assembly and screw driving
  • Packaging and palletizing
  • Quality inspection tasks
FAQ

Q: Does it need extra vision hardware?

A: No – vision is built-in with camera and processor.

Q: Is programming easy?

A: Yes – TMflow uses drag-and-drop blocks.

Contact Us

Email:edwardzhao@gbsxj.com

Phone/WeChat/WhatsApp: +8615121023088

Related Products
  • TM5-900 (longer reach version)
  • TM12 / TM14 (higher payload models)
  • TMvision add-ons
  • TMmobile base
